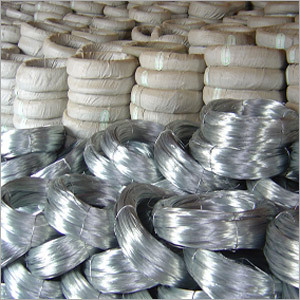

G.I wires

G.I wires
G.I wires
Product Code : 14
Product Description
HOT DIP GALVANISED WIRE

Mid steel drawn wire passes through molten zinc and coating is done Bright, Shining and free from foreign practice
IS - 4286 IS -280

SIZE Thicker

Wire - 4mm to 2mm, Fine Wire - 1.8.mm to .91mm

SIZE VARIATION

+/- 2.5% - Minimum of +/- 0.5% - 0.025 mm

OVALITY


Quality

Coating ( gm/mm2)

Heavy

240 to 290

Medium

135 to 170

Light

60 to 115

Commercial

30 to 40


TENSILE STRENGTH
Soft: 38 to 55 kgf
Hard: More than 55 kgf
COIL SIZE
Thicker Wire: 550mm
Fine Wire: 300mm
COIL WEIGHT
Thicker Wire: 45 - 150 kg.
Fine Wire:  20 - 30   kg.
PACKING
Thicker Gauage  : Hassain Cloth, binded four sides with wire ( on demand)
Fine Size: PVC film wrapped and  Hassian packing ( on demand)
WIRE ROD RAW MATERIAL
As per IS - 7887 and IS - 2062
Carbon: 0.12 to 0.20
Phosphorous: 0.05 max
Silicon: 0.05 max
